Bad Mods

(Why friends don't let friends mod.)

I can't tell you how I do it, but I can show you NOT to do it...

2013-02-14_07-40-11_413.jpg (113720 bytes)  2013-02-14_07-40-41_777.jpg (65254 bytes)  2013-02-14_07-40-54_834.jpg (111098 bytes)

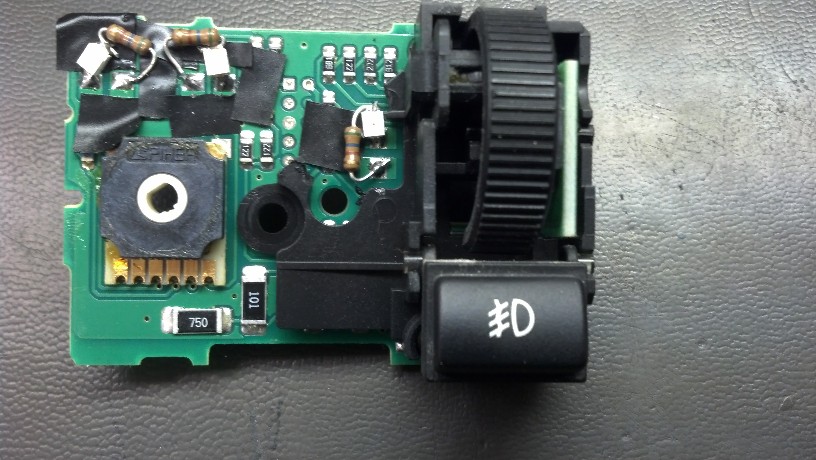

1.  LED's with resistors taped down to the circuit card.

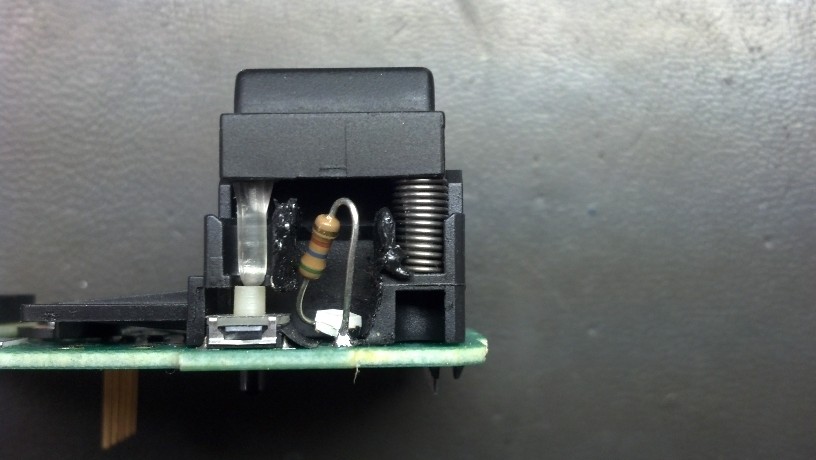

2.  LED with resistor (Note: soldering iron used to burn away material from switch to access circuit card.)

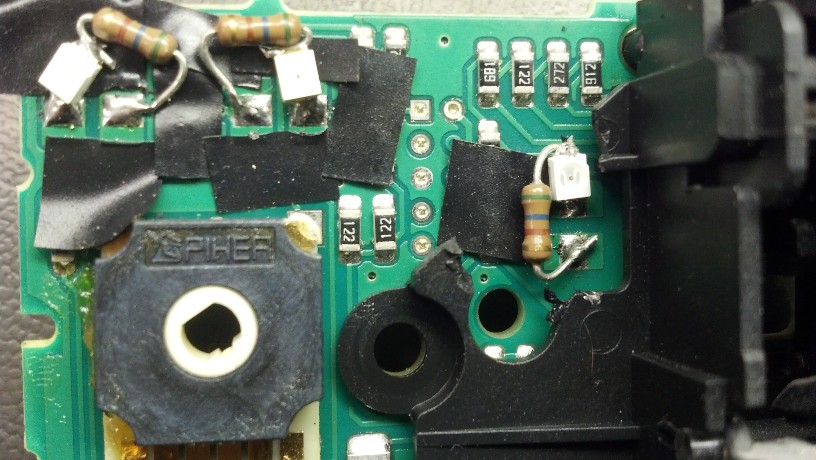

3.  LED's with resistors taped down to the circuit card.

 2013-02-14_07-41-39_541.jpg (92776 bytes)  2013-02-15_07-25-34_574.jpg (134685 bytes)  2013-02-15_07-25-53_113.jpg (132409 bytes)

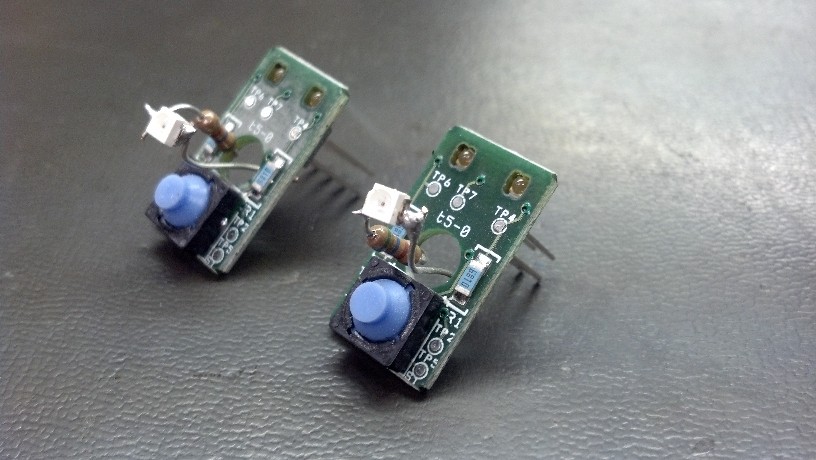

4.  LED's with resistors in a funky configuration.

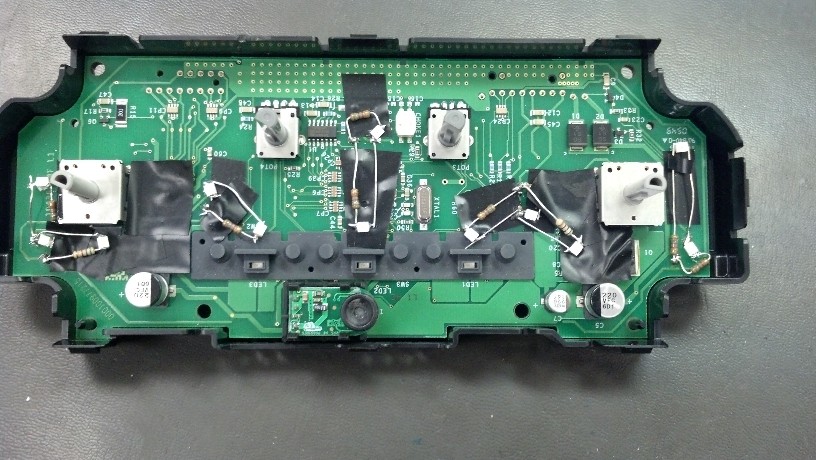

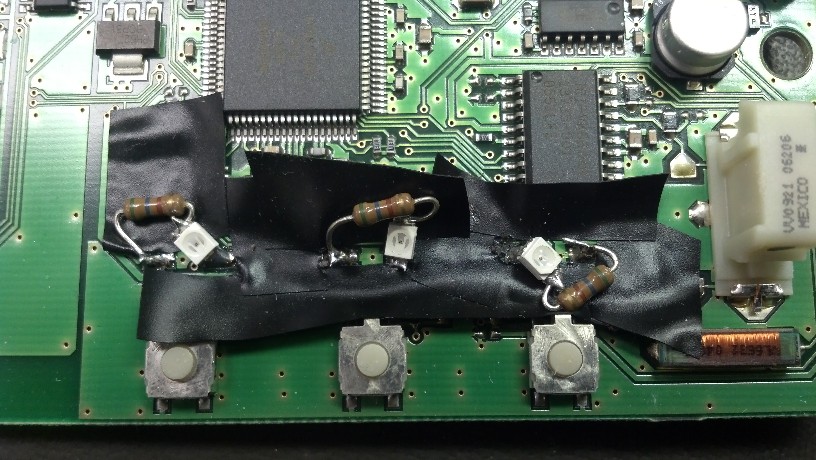

5.  LED's and resistors with liberal use of electrical tape.
6.  See above.  Note that less than half of the LED's actually worked.

 2013-02-15_07-26-08_321.jpg (141792 bytes)  2013-02-15_07-26-39_69.jpg (116117 bytes)  2013-02-15_07-26-50_642.jpg (99358 bytes)

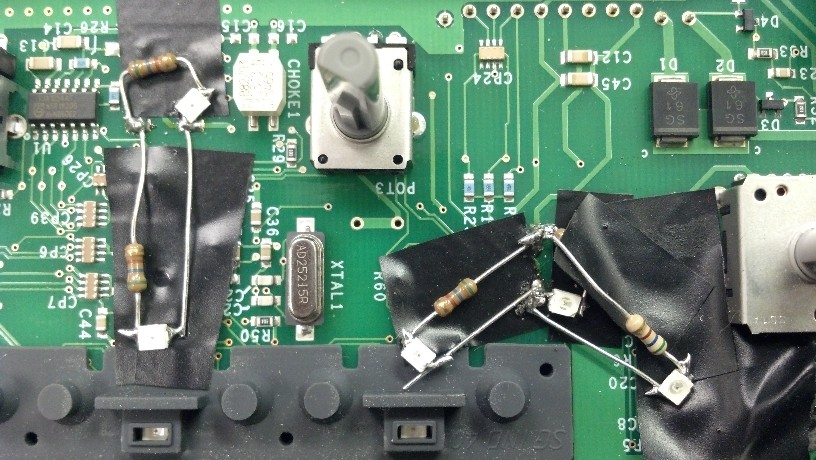

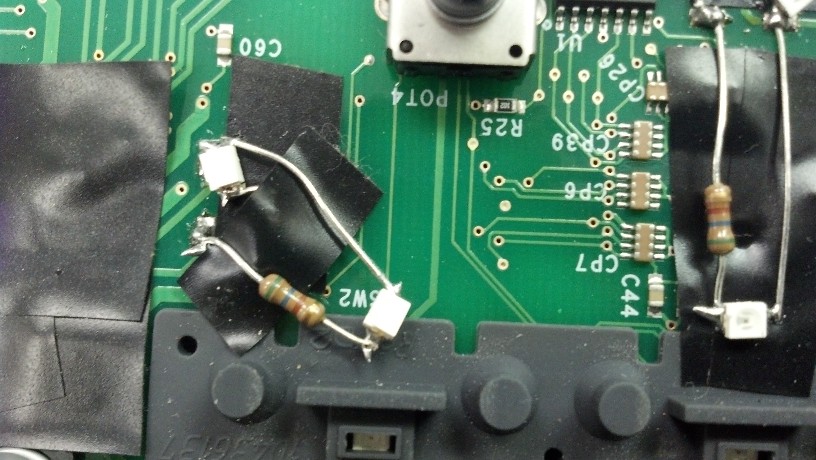

7.  Detail of image 6 (above).

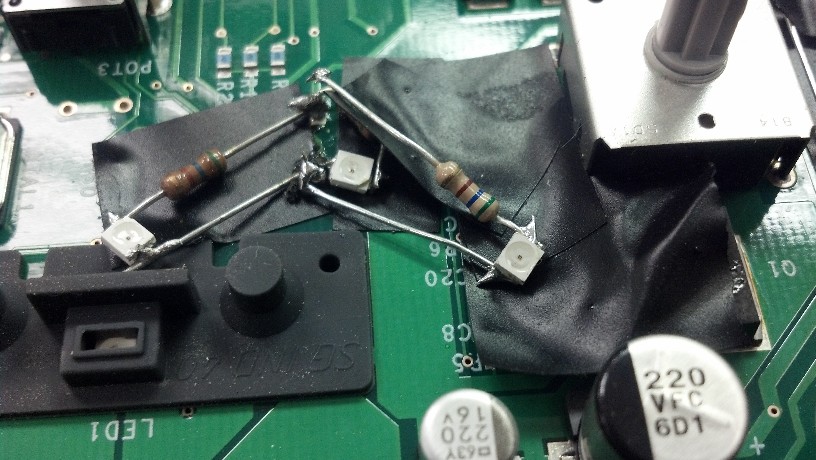

8.  Detail of image 6 (above).

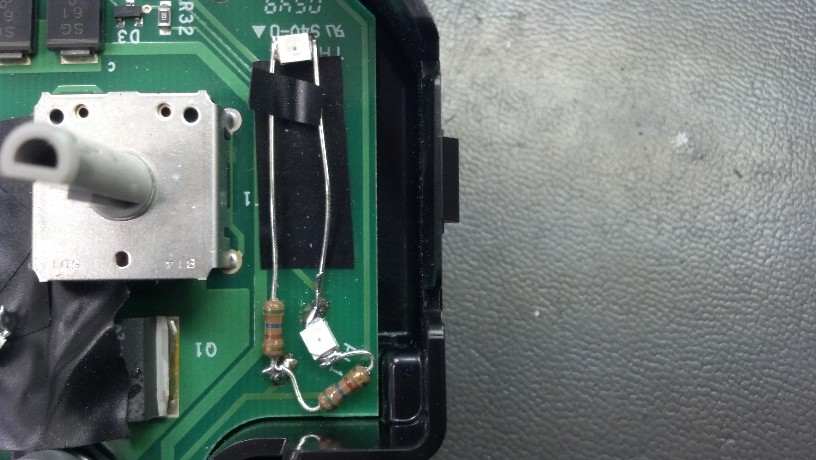

9.  Detail of image 6 (above).

10. Detail of image 6 (above).

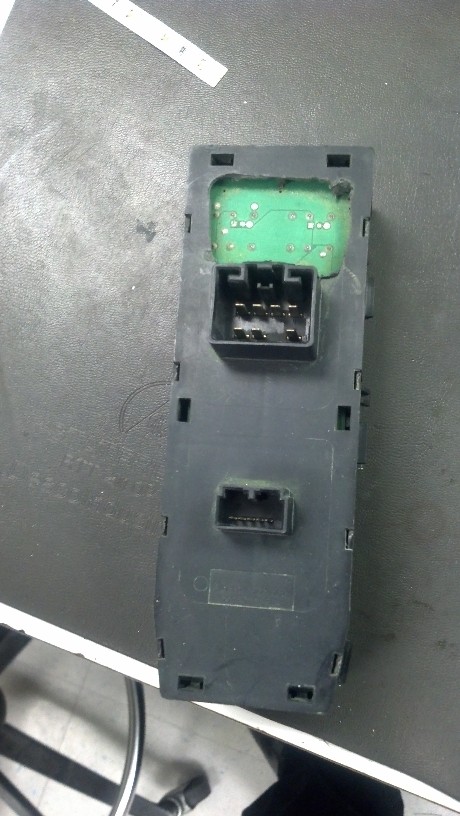

11.  Driver's window switch.
Note the use of a soldering iron and some sort of cutting device to access
the back of the circuit card.
